APC MDVR

Name

APC MDVR

Model

KN3204

KN3204-G

KN6204-G4

KN6204-G6

KN3208

KN3208-G

KN6208-G4

KN6208-G6

4G/3G

x

x

√

√

x

x

√

√

WiFi

x

x

x

√

x

x

x

√

GPS

x

√

√

√

x

√

√

√

LAN

MAX 8CH IP camera

MAX 4CH IP camera

AV Input

4CH AHD 1080p 30fps, H.265/H.264

8CH AHD 1080p 15fps or 720p 30fps, H.265/H.264

AV Output

1CH Analog and 1CH VGA Output

AI algorithm

ADAS/DMS/BSD/FR/APC, Optional

Storage

Support 1 x 2.5inch HDD/SSD and 1 x TF Card

Serial/IO/Speed pulse port

2 x RS232, 1 x RS485, 6 x I/O Inputs, 2 x I/O output, 1 x speed pulse

Speaker port

Can be connected to an external speaker or Handle Talkie

Fireproof box port

A disaster recovery port that can be connected to an external fireproof box for disaster recovery recording

CAN port

Optional

Power

DC: 8 ~ 36V

Network/Platform

MDVRPlayer, JT/T808-2019, JT/T808-2013, CMSV6, Wialon,uffizio,3rd Party etc.

Dimensions (LxWxH)

173(L) x175(W) x 67(H)mm

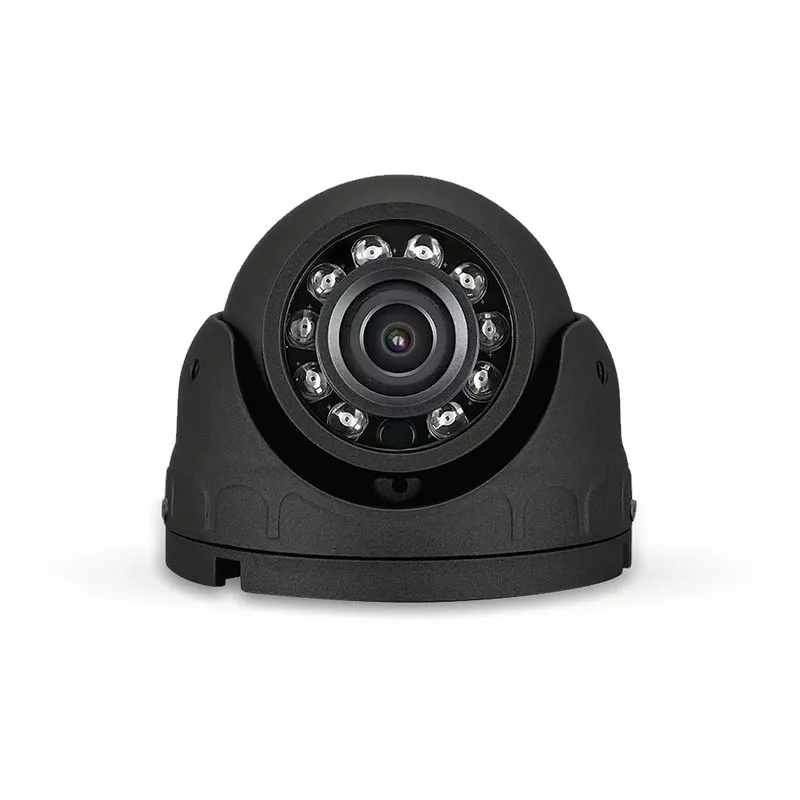

Name

APC Camera

Model

PFM-135R-D

Sensor

IMX307

ISP

FH8550

Sensor type

COMS

Pixel size

2.9um*2.9um

Imaging target

1/2.8 inch

Lens

4G+IR CUT

Focal length

2.8mm

Aperture

2.2

Field of view

D:131° H：112° V：62°

Image mode

Black and white image/color image switchable

Wide dynamic range

96dB

Resolution

1280*720

Frame rate

25fps

Voltage

12V

Current

200mA

Power consumption

2.4W

Line length

0.5 Meter
