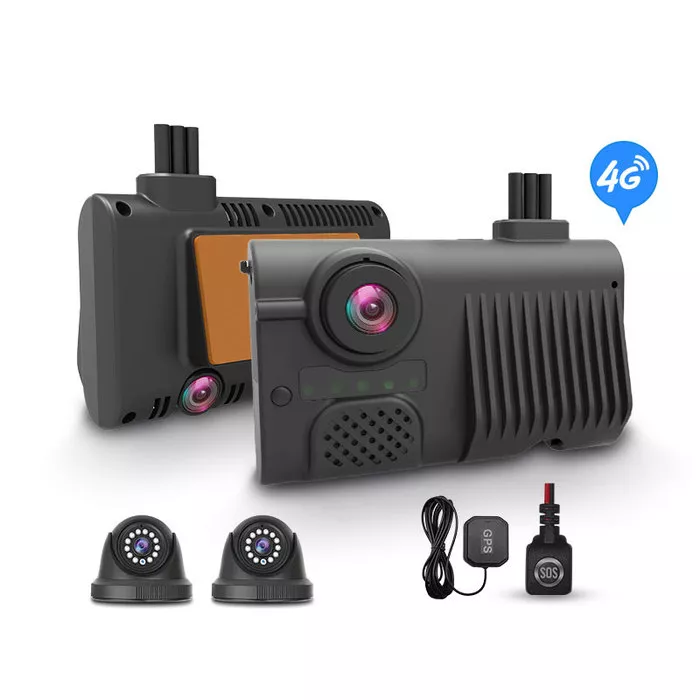

4CH HDD/SSD Mobile DVR

$65.00

Parameter

Model ： K Series

4G ： 4G&WiFi

Positioning ： GPS/BD/GLONASS

AI Feature ： ADAS/DMS/BSD, Optional

Serial Port ： 2 x RS232, 1 x RS485

Storage ： Support 1 x 2.5inch HDD/SSD & 1 x TF Card

Video Format ： H.264/H2.65

Video input ： 4CH AHD 1080p

Video output ： 1CH Analog and 1CH VGA Output

I/O input ： 8 x I/O inputs

I/O output ： 2 x I/O output

Speed pulse port ： 1 x speed pulse

Network/Platform ： MDVRPlayer, JT/T808-2019, JT/T808-2013, CMSV6, Wialon,uffizio,3rd Party etc.

Quantity

ADD TO CART

BUY NOW

QR code

Detail


Product Introduction

Series	K Series
Model	K3204	K3204-G	K6204-G4	K6204-G6
4G/3G	×	×	√	√
WiFi	×	×	×	√
GPS	×	√	√	√
AI algorithm	×	×	ADAS/DMS/BSD,Optional
AV Input	4CH AHD 1080p, H.265/H.264
AV Output	1CH Analog and 1CH VGA Output
LAN	1CH IP camera
Storage	Support 1 x 2.5inch HDD/SSD and 1 x TF Card
Serial/IO/Speed pulse port	2 x RS232, 1 x RS485, 8 x I/O Inputs, 2 x I/O output, 1 x speed pulse
Speaker port	Can be connected to an external speaker or Handle Talkie
Fireproof box port	A disaster recovery port that can be connected to an external fireproof box for disaster recovery recording
Power	DC:8 ~ 36V
Network/Platform	MDVRPlayer, JT/T808-2019, JT/T808-2013, CMSV6, Wialon,uffizio,3rd Party etc.
Dimensions(L×W×H)	173(L) x175(W) x 67(H)mm
