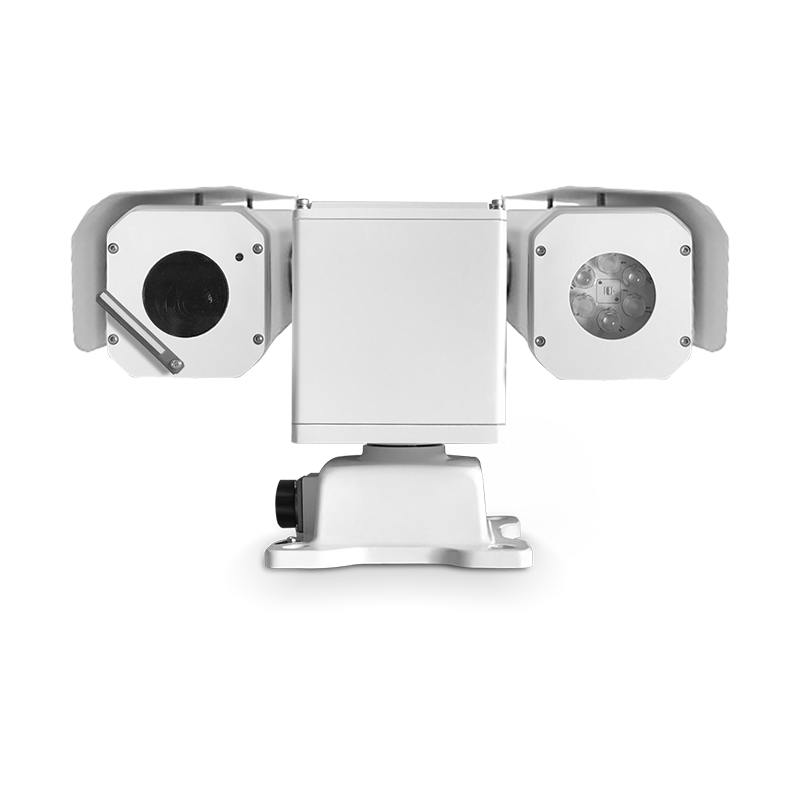

PTZ Camera

Signal system

PAL/NTSC

FPS

50Hz:25fps(1920*1080)

60Hz:30fps(1920*1080)

Minimum illumination

Color：0.05Lux@F1.6， White/Black：0.005Lux@F1.6

Day and night conversion mode

Support IR-CUT

Aperture control

Auto

BLC

on/off

White balance

Auto

Exposure mode

Auto

Wide dynamic

Support

Optical zoom

18times , 4.7 to84.6mm（F1.6 to F3.5）

PTZ function

Horizontal preset speed

160°/s

Up and down preset speed

80°/s

Horizontal manual control speed

0º～160°/s

Manual speed control up and down

0º～55°/s

Preset position

256

Tour function

Support

Line scan speed

0.5～30°/s

Trajectory self-learning

Support

Wavelength

850nm

Throw distance

120m

General specifications

Power supply

DC9-18V, Maximum power 45W (AC24V/DC9~36V Optional)

Weight

7.5Kg

Installation method

Flat base mounting

Relative humidity

10～90%

Operating temperature

-35℃～55℃

Waterproof level

IP66
